Industrial Turbine Meters


Industrial Turbine Meters

  • From 1” to 6” in diameter

We supply a wide range of specialized Turbine Meters, ¾" up to 4", and 3 up to 200m3/h, for petroleum products and LPG.

Each model is designed for a specific use:

  • On-truck metering for pumped products: heating oil and LPG
  • On-truck gravity measurement for gasoline
  • Truck loading racks
  • Railcar loading stations
  • Truck and railcar unloading
  • Mobile measurement
  • Pipeline metering skids

INDUSTRIAL TURBINE FLOW METERS


HO SERIES Liquid Turbine Flow Meters
HO SERIES Liquid Turbine Flow Meters

HO SERIES Liquid Turbine Flow Meters

Precision flow measurement of industrial liquid applications within the process industries.

Features include:

  • Low cost
  • Outstanding accuracy
  • Linearity: ± 0.5%
  • Repeatability: ± 0.1%
  • Flow rate capability from 0.23 to 56.775 LPM
  • Line sizes from ¼” to 12”
  • Wide flow ranges 10:1 to 100:1 turndown
  • Wide variety of process connections
  • Wide selection of construction materials
  • Operates over a wide range of temperatures & pressures

HO SERIES Gas Turbine Flow Meters
HO SERIES Gas Turbine Flow Meters

HO SERIES Gas Turbine Flow Meters

Precision flow measurement of industrial gas applications within the process industries.

Features include:

  • Low cost
  • Outstanding accuracy
  • Linearity: ± 0.5%
  • Repeatability: ± 0.1%
  • Flow rate capability from 0.23 to 56.775 LPM
  • Line sizes from ¼” to 12”
  • Wide flow ranges 10:1 to 100:1 turndown
  • Wide variety of process connections
  • Wide selection of construction materials
  • Operates over a wide range of temperatures & pressures

HP SERIES Turbine Flow Meters for Liquids & Gas
HP SERIES Turbine Flow Meters for Liquids & Gas

HP SERIES Turbine Flow Meters for Liquids & Gas

Precision flow measurement of liquid & gas applications in large diameter pipes at a lower cost than using an in-line flowmeter.

Features include:

  • Low cost
  • Low pressure drop
  • Wide flow turndown ranges for liquids & gas
  • Outstanding accuracy
  • Line sizes from 4” to 72”
  • Process connection flexibility
  • Install or remove from an active line without stopping service
  • -28°C to +205°C standard range with Viton seal

Insertion for Liquids:

  • Flow range : 0.0762 to 15 m/sec
  • Accuracy : ± 1%

Features include:

  • Flow range : 1.524 to 76.2 m/sec
  • Accuracy : ± 2%

MF SERIES Turbine Flow Meters for Liquid Applications
MF SERIES Turbine Flow Meters for Liquid Applications

MF SERIES Turbine Flow Meters for Liquid Applications

Developed to meet the need for a low flow, measurement device for service on clean, low & moderate viscosity liquid measurement applications.

Features include:

  • ½” MS line size
  • Flow rate capability from 0.0265 to 11.35 LPM
  • Linearity: ± 1%
  • Repeatability: ± 0.25%
  • 12 overlapping size ranges
  • For clean, low viscosity applications

MF SERIES Turbine Flow Meters for Gas Applications
MF SERIES Turbine Flow Meters for Gas Applications

MF SERIES Turbine Flow Meters for Gas Applications

Developed to meet the need for a low flow measurement device for service on clean, low & moderate viscosity gas measurement applications.

Features include:

  • ½” MS line size
  • Flow rate capability from 0.008 to 1.607 Nm3/h
  • Linearity: ± 2%
  • Repeatability: ± 0.25%
  • Six overlapping size ranges
  • Specific criteria must be met for gas flow applications. Consult Soliflo for specific sizing & calibration recommendations.

TEFLON SERIES Turbine Flow Meters
TEFLON SERIES Turbine Flow Meters

TEFLON SERIES Turbine Flow Meters

For measuring the flow of corrosive liquids, ultrapure water & chemical applications.

Features include:

  • Suitable for clean liquid service at one centistoke
  • Flow rate capability from 1.35 to 1835 LPM
  • Line sizes ¼” to 3”
  • Provides frequency output
  • Mates with RF flanges per ANSI or DIN flanges
  • Linearity: ± 1%
  • Repeatability: ± 0.1%

STAR SERIES Turbine Flow Meters for Liquid Applications
STAR SERIES Turbine Flow Meters for Liquid Applications

STAR SERIES Turbine Flow Meters for Liquid Applications

For applications such as waterflood secondary recovery, fuel metering, petroleum products, chemicals, etc.

Designed & manufactured for process liquids where cost is of primary concern

Features include:

  • Low cost, rugged design
  • NPT end fittings
  • Line sizes from ¼” to 3”
  • Flow rate capability from 0.95 to 3.028 LPM
  • Linearity: ± 1%
  • Repeatability: ± 0.1%
  • Temperature range : -28°C to +232°C
  • Faster delivery periods

LO-CO SERIES Turbine Flow Meters for Liquid Applications
LO-CO SERIES Turbine Flow Meters for Liquid Applications

LO-CO SERIES Turbine Flow Meters for Liquid Applications

A line of meters that is a perfect fit for liquid utility & OEM applications.

Designed & manufactured for process liquids where cost is of primary concern. The Lo-Co meter is Hoffer’s most economical flow solution for liquid flow applications.

Features include:

  • Low cost, rugged design
  • All stainless steel construction
  • Line sizes from ½” to 2”
  • Flow rate capability from 1.7 to 850 LPM
  • Linearity: ± 1%
  • Repeatability: ± 1%
  • Private Label versions available. Contact Soliflo.
  • Available with signal conditioner/converter.

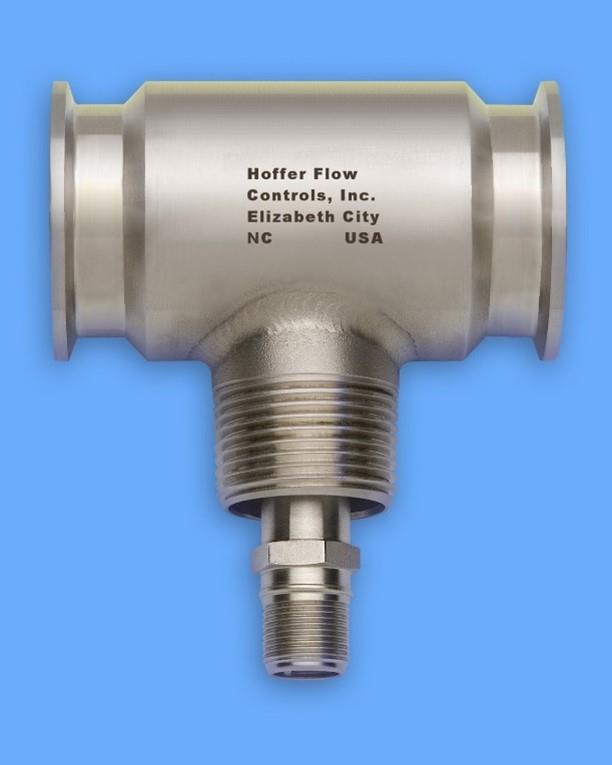

SANITARY SERIES Turbine Flow Meters for Hygienic Applications
SANITARY SERIES Turbine Flow Meters for Hygienic Applications

SANITARY SERIES Turbine Flow Meters for Hygienic Applications

Precision sanitary flow measurement of process liquid applications such as pharmaceutical, beverage, etc.

Features include:

  • Tri-clamp end fittings
  • 11 sizes available
  • Line sizes from ¼” to 3”
  • Flow rate capability from 1.32 to 2.460 LPM
  • Temperature range : -40°C to +232°C
  • Linearity: ± 0.5%
  • Repeatability: ± 0.1%
  • Manufactured to be compliant with ASME BPE Bioprocessing Equipment Standard
  • All meter surfaces meet sanitary standards with 32 micro inch finish

Submit an Enquiry
